On table cardiac arrest, with corpuls cpr mechanical compressions and simultaneous PCI.
An excellent outcome - flow was restored and SBP recorded at 100mmHg
The following patient had an inferior STEMI & cardiogenic shock, and suffered a cardiac arrest during a diagnostic angiogram.
There was severe triple vessel disease and an ostially occluded RCA.
Mechanical compressions were performed using corpuls cpr, whilst the RCA was wired (Image 2) and flow restored (Image 3).
The Right Arm in the Cath Lab
In the Cath Lab, complications can arise during the treatment of patients, which sometimes require resuscitation measures. The sterile environment and limited personnel are not ideal for resuscitation with manual chest compressions. Therefore a mechanical chest compression device is preferred.
The corpuls cpr has redefined the standard for the next generation of automatic chest compression devices to achieve the best possible patient outcome in the event of a cardiac arrest.
It is also more important than ever to protect our medical personnel; with the corpuls cpr arm, hospital staff can be stood back from the patient whilst controlling the chest compressions from a safe distance away, providing uninterrupted automatic therapy.
Some diagnostic procedures, such as X-rays or computed tomography scans, sometimes have to take place under continued resuscitation. The radiation exposure that occurs during such procedures is a risk for medical staff that should not be underestimated. The corpuls cpr makes it possible to carry out such procedures in compliance with occupational safety.
The European Resuscitation Council (ERC) specifically recommends using mechanical chest compression devices, such as the corpuls cpr, during angiography under resuscitation.
<
In the cardiac catheter lab, the artefact-free view on the coronary vessels is of decisive importance.
The corpulscpr compression pad only gives a minimal shadow, otherwise there is an unimpeded view on the coronary vessels.
Key Design Advantages for In-Hospital Treatment
Designed to be set up and deployed within seconds - can be left in standby until it is needed during difficult cardiac procedures in theatres.
No limitations with accessing the patient’s thorax due to the rotating arm.
Compression depth and frequency can be adjusted during therapy.
Norestrictions regarding the patient’s weight and breadth of thorax. Can be used on children and maternal cases.

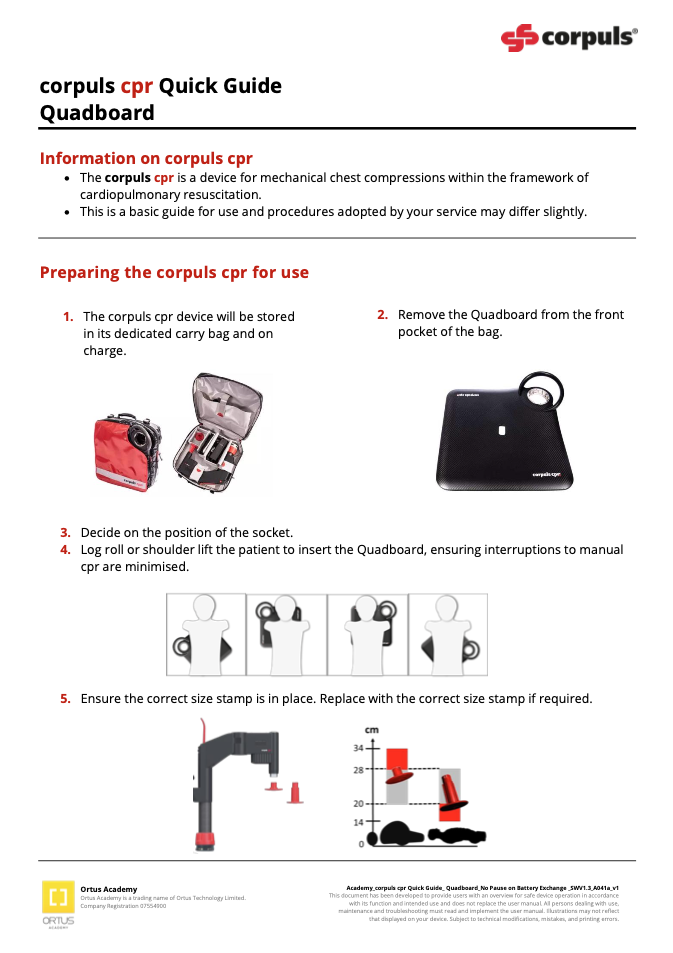

The Quad Board has been specifically designed for in-hospital use. This low profile board can be deployed at any time and will still be comfortable for the patient to lay on.
All compression boards available are made of radiolucent carbon fibre material to ensure the use of radiology equipment is not compromised at any time.
The parts of the corpuls cpr arm, which for technical reasons cannot be radiolucent, are made as narrow as possible. This allows the cath lab team to adjust the ray path to the ideal position for a clear view of the heart and the blood vessels.

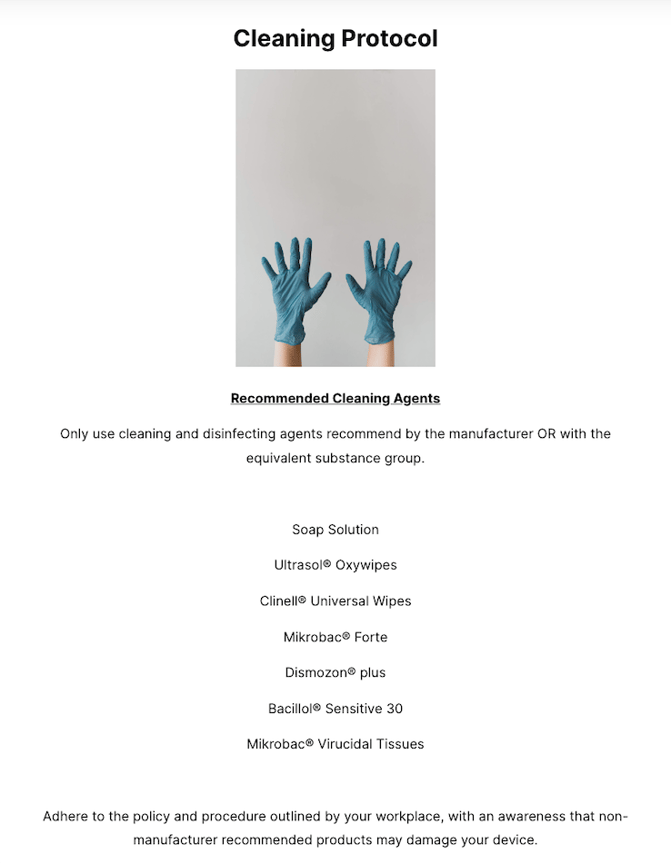

No consumables to purchase - The compression pads come in two sizes and can be disinfected with all common agents.
Revolutionary Design

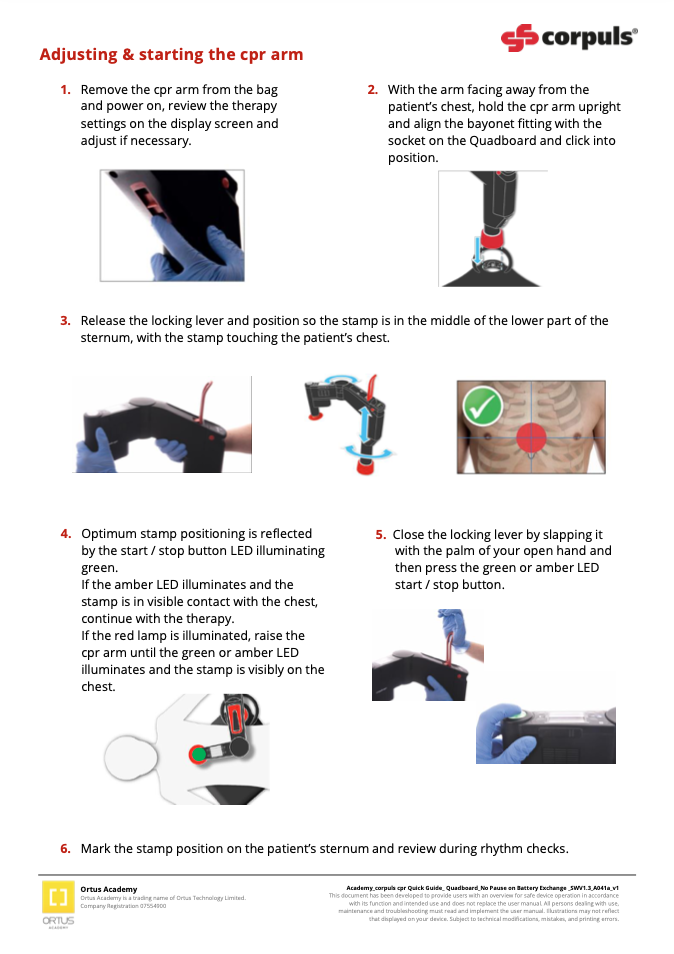

The corpuls cpr rotating arm grants free access to the patient's thorax at all times. The arm itself is mounted to one side, but the swivel function allows the range of movement to accurately position the device to give uninterrupted chest compressions.
With two joints and a height adjustable arm the corpuls cpr can be quickly adapted to the patient‘s body. It guarantees the optimal pressure point during therapy. Compression depth and mode can be easily adjusted. This design allows the quick switch from manual to automated chest compressions in matter of seconds.

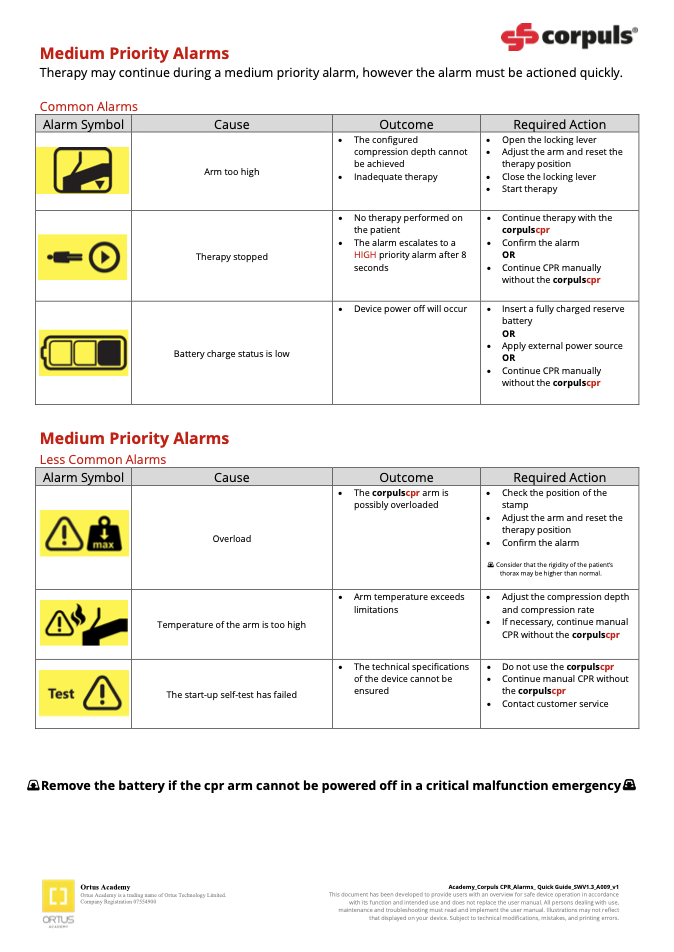

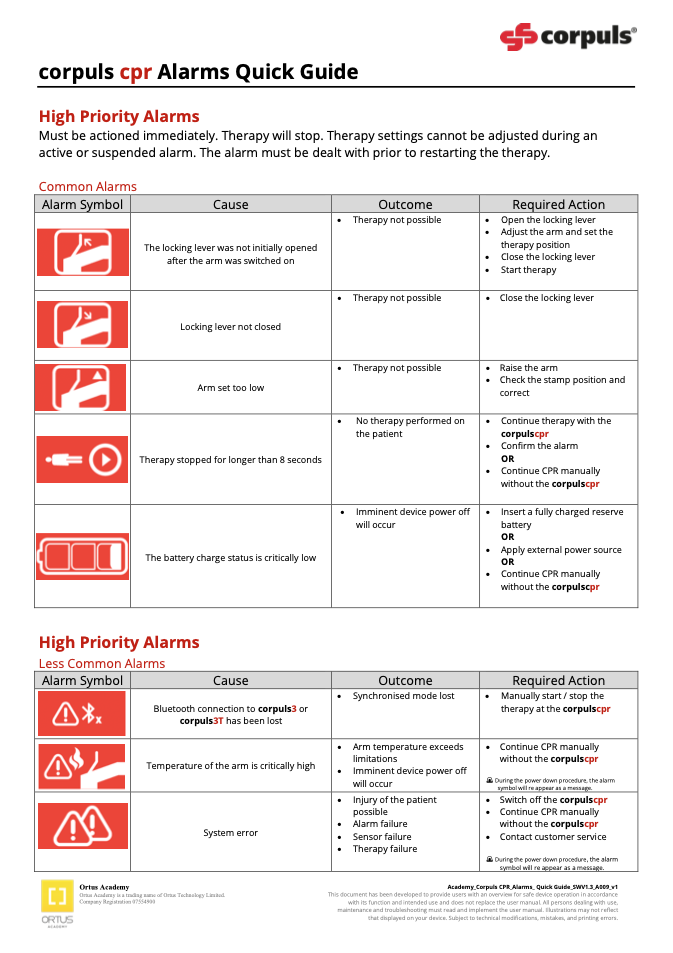

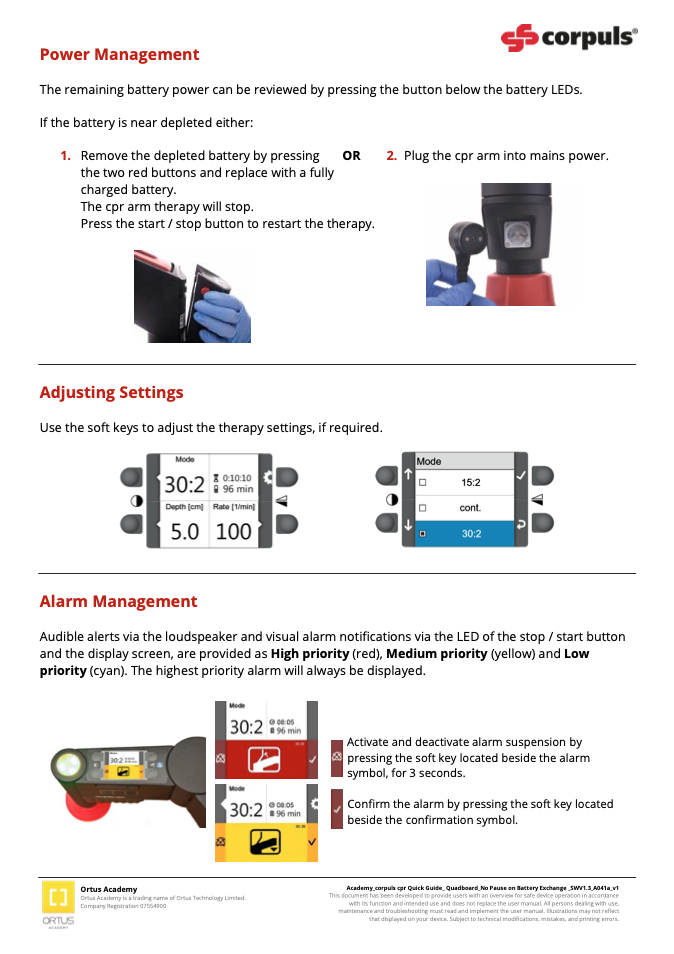

The intuitive user interface features a therapy start/stop button with alarm and 4 soft-keys. The alarm will sound and flash red if the arm is not placed at the correct depth to give the patient accurate chest compressions.
Back Boards
All of the back boards are radiolucent, and made from robust, lightweight carbon fibre. The boards are easy to clean and disinfect after use, and store away neatly in the bag pack. For optimal effectiveness in all areas of rescue and resuscitation, three different boards are available...
Quad Board
Designed specifically for in-hospital treatment. Boards are radiolucent material to ensure the use of radiology equipment is not compromised at any time.
Rec Board
Designed specifically for pre-hospital treatment. Attachment straps allow it to be fixed to any standard stretcher system.
Scoop Board
Designed specifically for use with a scoop stretcher or vacuum mattress. Also features the securable straps to attach to any standard stretcher system.
Reusable Chest Stamps
The stamps come in two sizes and can be disinfected with all common agents. This helps to keep running costs to a minimum and ensures the corpuls cpr can be deployed on every CPR job without financial worries in the back of operators’ head.
Carrying Bag Pack
The corpuls cpr comes in an ergonomic, hig quality bag pack that is capable of storing all relevant accessories in designated compartments. The material is easy to wipe clean, and comes with an elasticated shoulder strap for seamless transportation to an emergency location.
The perfect pairing for synchronised resuscitation with corpuls3 & corpuls cpr
Thanks to the synchronised therapy, stress amongst the team can be significantly reduced. corpuls3 and corpuls cpr become one and when integrated into the team, this duo makes resuscitation even more efficient.
“The Amazing Machine Behind the Miracle” - A story from Queensland Ambulance Service in Australia
Queensland Ambulance Service tell the story of how they brought patient Jamie ‘back from the dead’ by providing life-saving therapy using the corpuls cprmechanical chest compression device.
