corpuls cpr Training and Resources

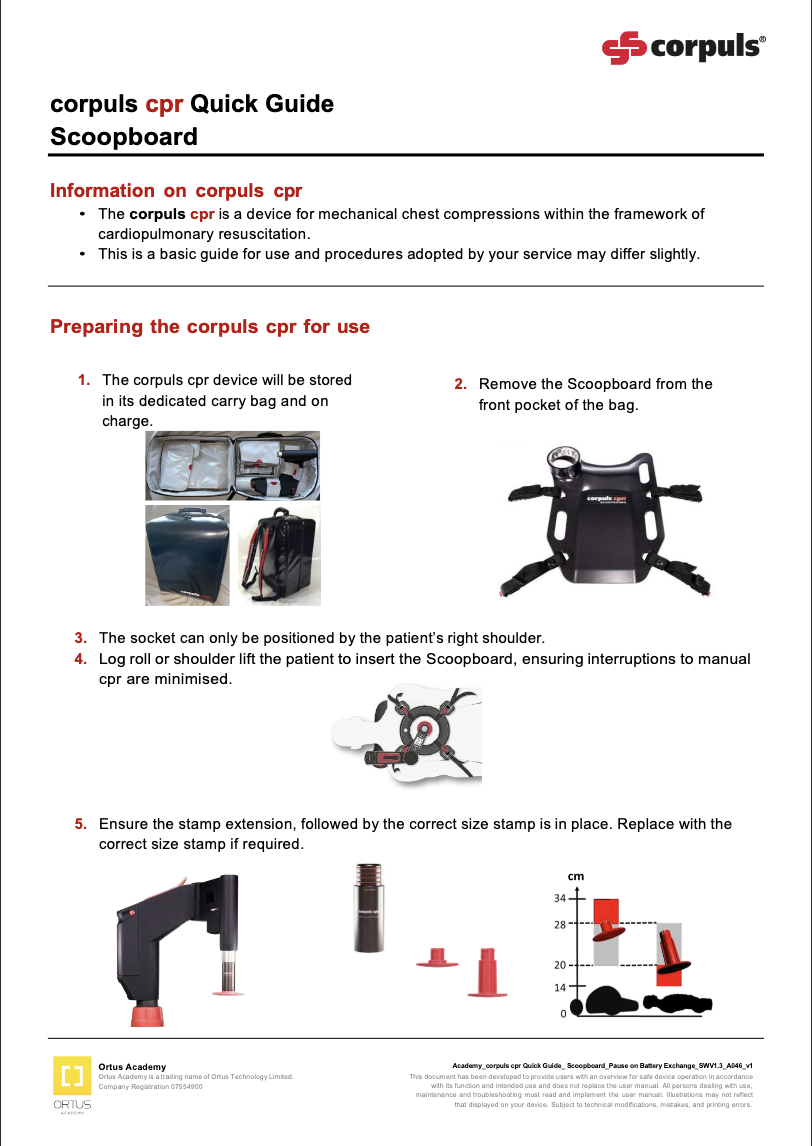

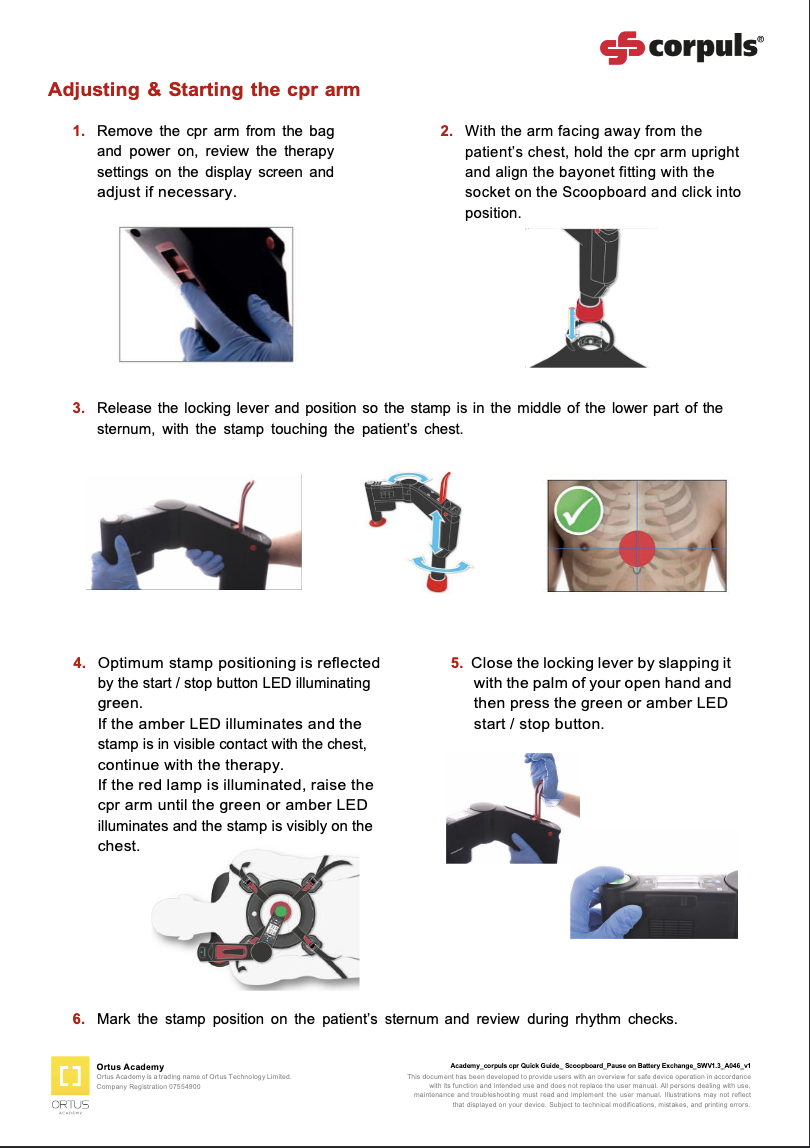

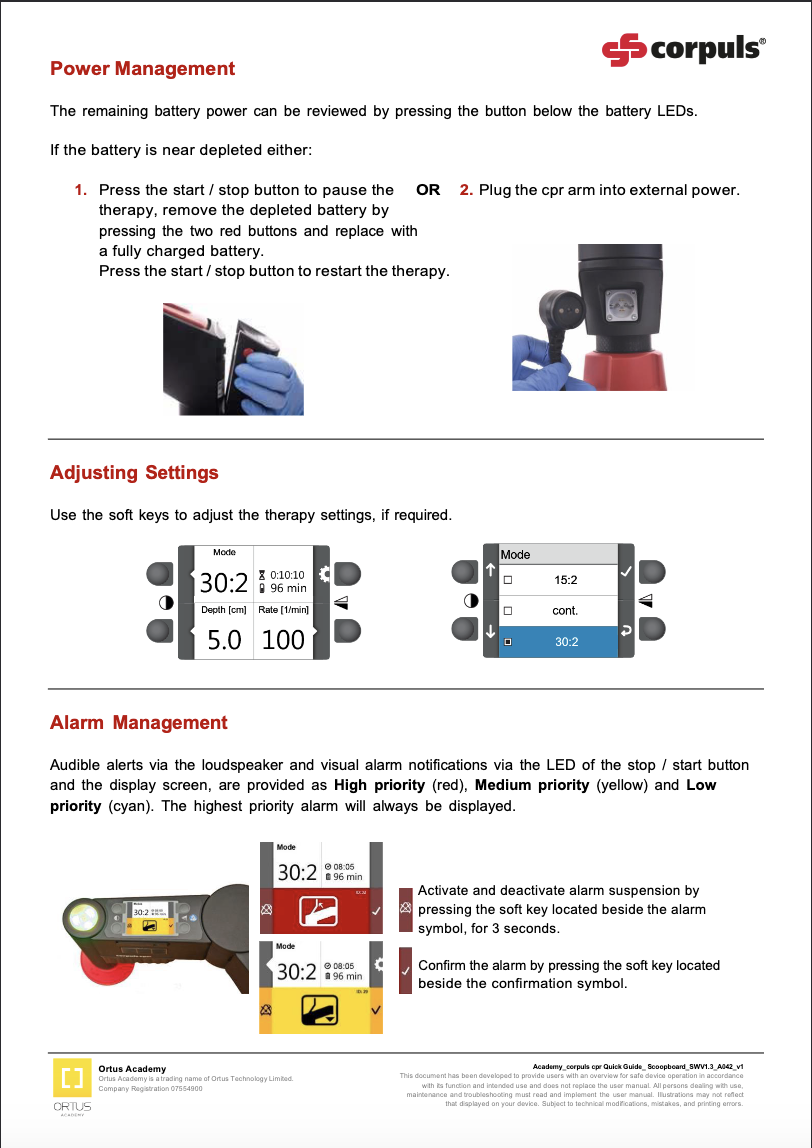

Click on the pages below to view and download the corpuls cpr Quick Guide

Want to familiarise yourself with the alarms? They're all listed for you below!

Need a checklist for function testing? You can download it here!

Only use the recommended cleaning agents shown below:

Image - CPR Cleaning Agents

Download the latest User Manual here!

Image corpuls cpr IFU sw1.3

Key Features

Setting the Benchmark for Future-Proof Mechanical CPR

cpr_arm
Patient Parameters

Thorax Height: 14 - 34 cm.

No restrictions regarding the patient’s weight and breadth of thorax.

Approved for use on children from the age of 8 years.

Compression Parameters

Compression Frequency: 80-120 compressions/min
(individually adjustable in increments of 1 compression/min).

Compression Depth: 2 - 6 cm
(individually adjustable in increments of 0.1 cm).

Three different Therapy Modes: 30:2 / 15:2 / continuous.

Energy Management

Can be operated with a battery as well as via mains connector.

Lithium-polymer (LiPo) or Lithium-ion (LiIon) batteries, each with 90 minute runtime.

The battery can be exchanged quick and easy during therapy. The operation parameters are retained for 30 seconds.

Battery charging time via magnetic plug (no therapy): approx. 105 min: 0–80% then approx. 30 min:  80-100%

User-Friendly Operation

Switch from manual CPR to mechanical thorax compressions with minimal interruption.

Therapy start/stop button with alarm function and 4 soft keys

LED Start/Stop button that uses a traffic light system to give the optimum arm positioning instructions.

Simultaneous display of operating mode, compression depth, compression frequency, time/therapy time/remaining battery time in minutes/percent.

corpuls cpr system all boards
Image - CPR Quad Board
160426_Logo_cpr_4_97_58

The powerful arm that saves lives.

Back Boards

All of the back boards are radiolucent, and made from robust, lightweight carbon fibre. The boards are easy to clean and disinfect after use, and store away neatly in the bag pack. For optimal effectiveness in all areas of rescue and resuscitation, three different boards are available...

crp-arm-quad-board-

Quad Board

Designed specifically for in-hospital treatment. Boards are radiolucent material to ensure the use of radiology equipment is not compromised at any time.

cpr-arm-rec-board

Rec Board

Designed specifically for pre-hospital treatment. Attachment straps allow it to be fixed to any standard stretcher system.

cpr-arm-scoop-board-

Scoop Board

Designed specifically for use with a scoop stretcher or vacuum mattress. Also features the securable straps to attach to any standard stretcher system.

compression pads cpr arm

Reusable Chest Stamps



The stamps come in two sizes and can be disinfected with all common agents. This helps to keep running costs to a minimum and ensures the corpuls cpr can be deployed on every CPR job without financial worries in the back of operators’ head.

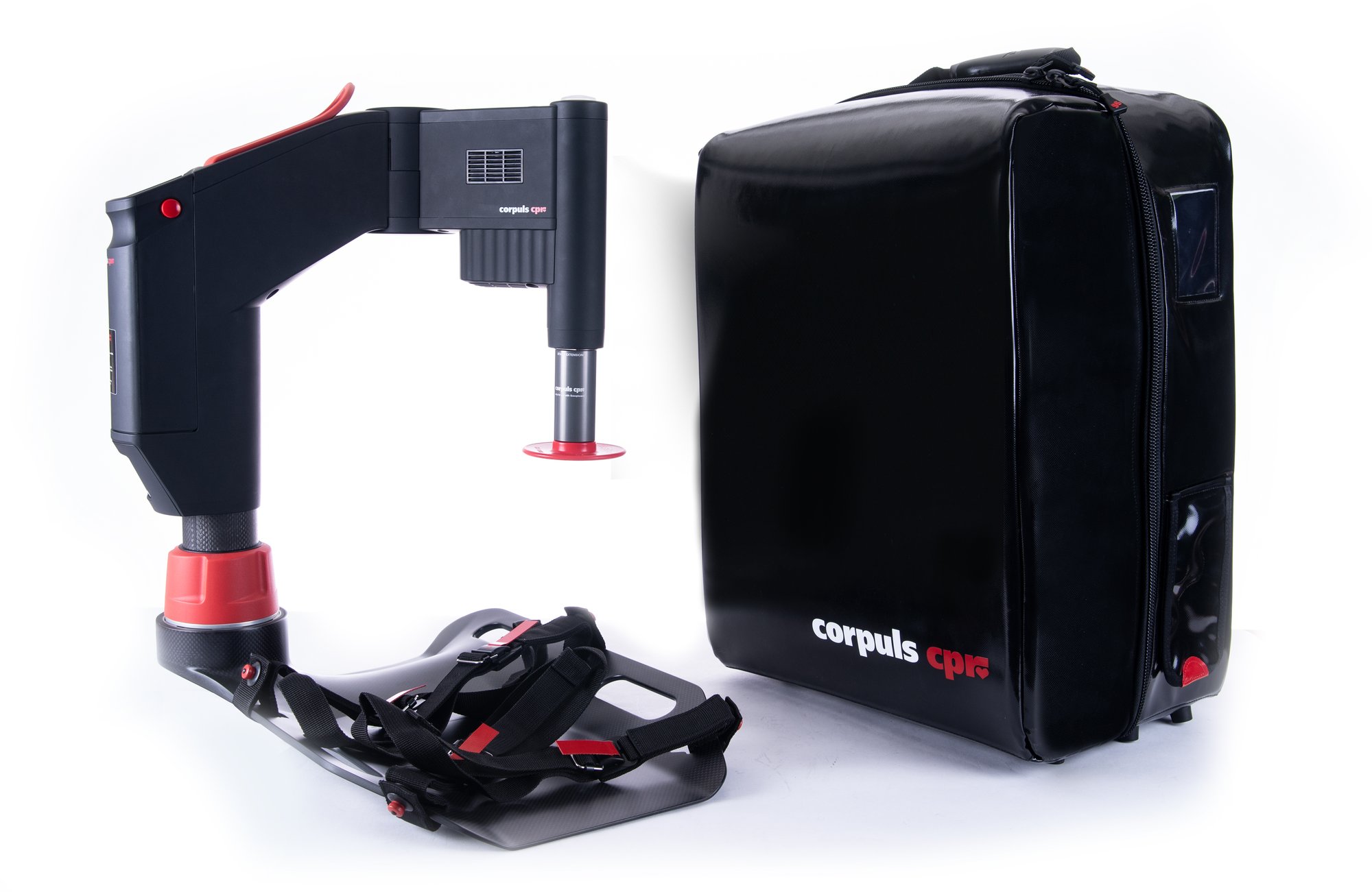

Carrying Bag Pack

The corpuls cpr comes in an ergonomic, hig quality bag pack that is capable of storing all relevant accessories in designated compartments. The material is easy to wipe clean, and comes with an elasticated shoulder strap for seamless transportation to an emergency location.



cpr mit rucksack-1

Download corpuls cpr Brochure
